Overview

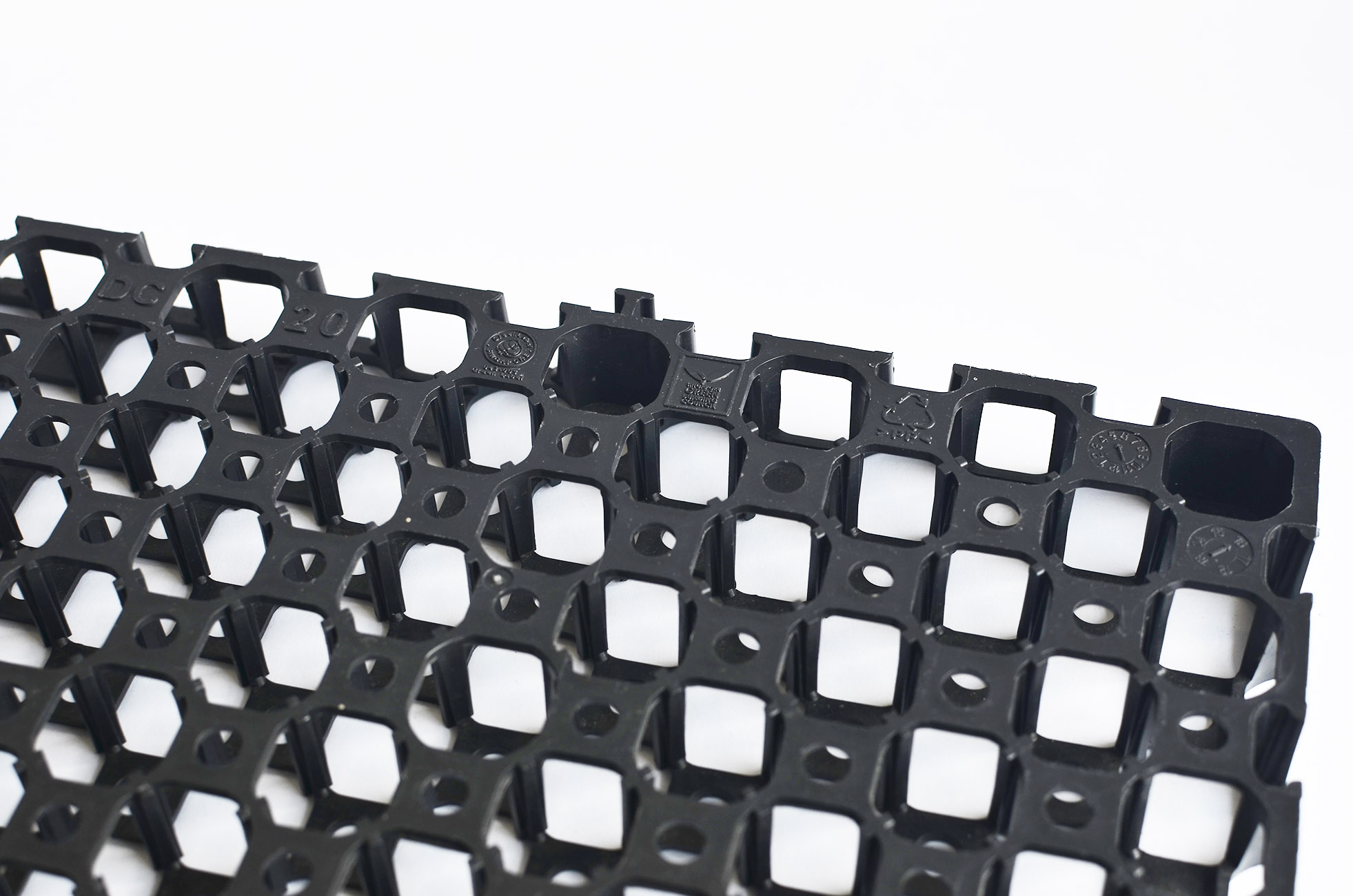

Drainage Cell GrasCell® DC20  is a lightweight flexible, sub-soil drainage module. This mat is manufactured from a UV-stablised, 100% recycled polypropylene with Singapore Green Label certified. It replaces the traditional use of heavy granite aggregates for sub-soil drainage. It also acts as a protection board for waterproofing membrane. GrasCell DC20 reduces sound transmissionand increase heat insulation.

Depending on the requirements ofeach project can choose the type of height 20mm, 30mm or 50mm.

ADVANTAGE

  • Lightweight
  • High strength and flexible
  • Cost effective
  • Easy handling and  installation
  • Efficient sub-soil drainage
  • Suitable for retrofitting and/or new projects
  • Reusable and recyclable

AREAS OF APPLICATION

GrasCell® DC20 applied to areason roof gardens; Landscape decks; Plaza decks, Planter boxes; Pervious pavements; Roadways and carparks; Tunnels, Landfills, Retaining / basement walls; Golf courses; Sports fields and parks, Railways and airports, Under gravel filter systems, Weep hole covers  ...

Specifications

Product GrasCell DC20
Material Recycled PP
Height (mm) 20
Width (mm) 500
Length (mm) 500
Compression Strength (tonnes/m2) >103
Weight (kg/m2) ~2.6
Water Discharge (l/m.s) 11
Airy surface 65%
Color Black
