Overview

PlanterCell® 150Mini, by it name is a small version of our PlanterCell® 150 green wall system. This mini model allows for more creative design options of green walls and provides solutions for facades with space constrains.

The box a single piece injection moulding is designed with four cells, acting as reservoirs with water storage capacity of approx. 6.25l/m2 to nourish plants via capillary action resulting in reduced irrigation lines and self-locking clips and anchor bolts to create a green wall.

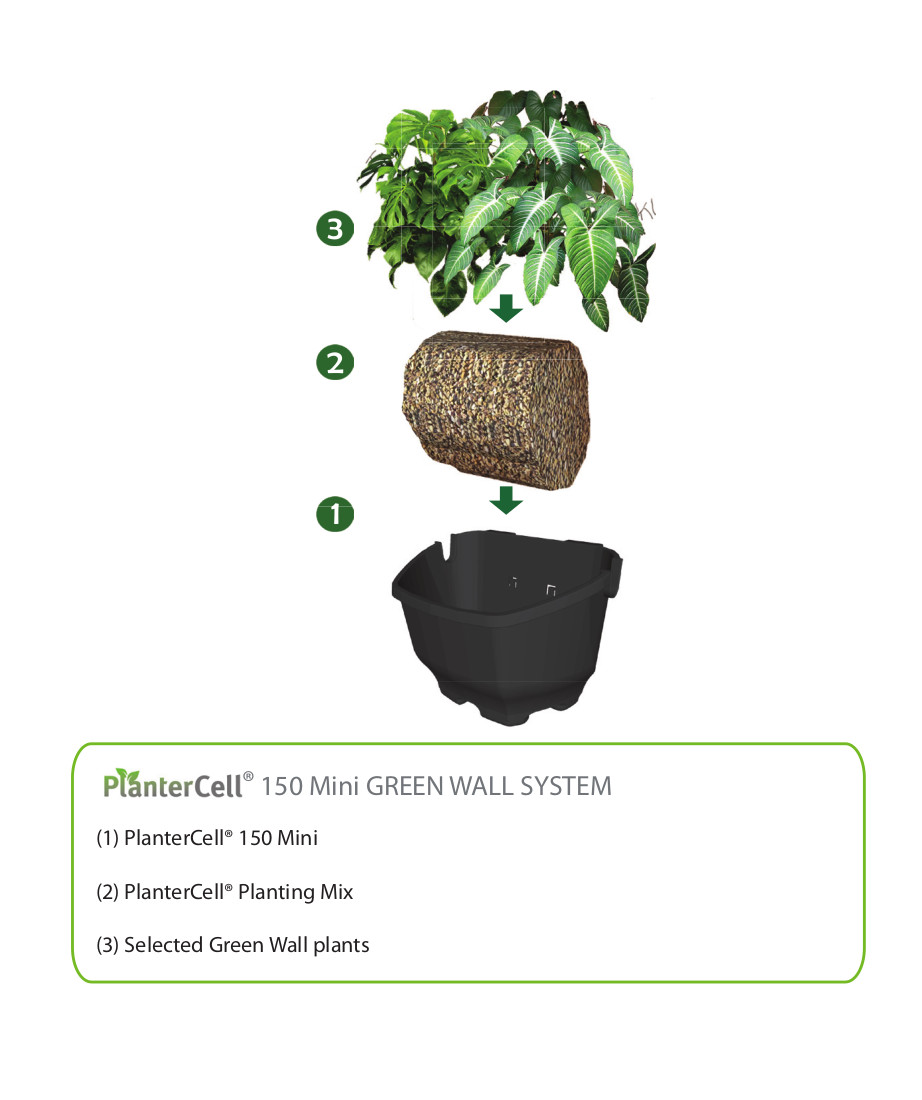

The system consist of the planter box, PlanterCell Planting Mix and Insu Felt as a separation layer between the planting media and the cells to prevent clogging of the reservoirs. The system allow for pre-growing of greens prior to installation on-site.

Benifits

  • Lightweight and durable
  • Suitable for retrofitting and/or new projects
  • Easy mounting and dismounting
  • Cost effective
  • No pre-growing required
  • No assembly required
  • Suitable for a wide selection of plants
  • Easy plant replacement during maintenance or design change
  • Reduces stormwater runoff and slow down peak discharge
  • Reservoir allows rainwater harvesting and storage
  • Promotes healthier plant growth
  • Reduce irrigation frequency
  • Reusable and recyclable

Recommended Application

PlanterCell® 150 Mini  applied to areas such as Indoors and outdoors wall facades, Screen walls, Feature walls, Garden features, Walkways and hoarding, Traffic noise barrier wall, Vertical farm...

Specifications

Product Name PlanterCell 150 Mini
Material Recycled PP
Height (mm) 150
Width (mm) 135
Length (mm) 200
Pieces per m² 25
Weight (kg/unit)

empty : 0.2

planted: 1.4 - 2

Cells (Reservoirs) 4
Water Storage: Planting within tray (l/unit) 0.25
Colour Black
