Overview

PlanterCell® H2O-R Panel is a prefabricated composite geen wall system. This panel incorporates a high strength PVC lightweight Insu® Board, hydrophilic PlanterCell® H2O-R Foam, Insu® Felt, PlanterCell® H2O-R Moisture Mat and Insu® Net, with automatic irrigation system and drainage tray. Developed to meet the requirements of a slim profile green wall system with flexibility for designing configuration solutions and plants layout.

ADVANTAGE

  • Lightweight
  • Suitable for retrofitting and/or new projects
  • Slim design
  • Allow great flexibility in design layout
  • Able to conform to site dimensions and configurations
  • No pre-growing of plants required
  • Suitable for a wide selection of plants
  • Easy plant replacement during maintenance or design change
  • Reduces stormwater runoff and slow down peak discharge
  • Cost effective

AREAS OF APPLICATION

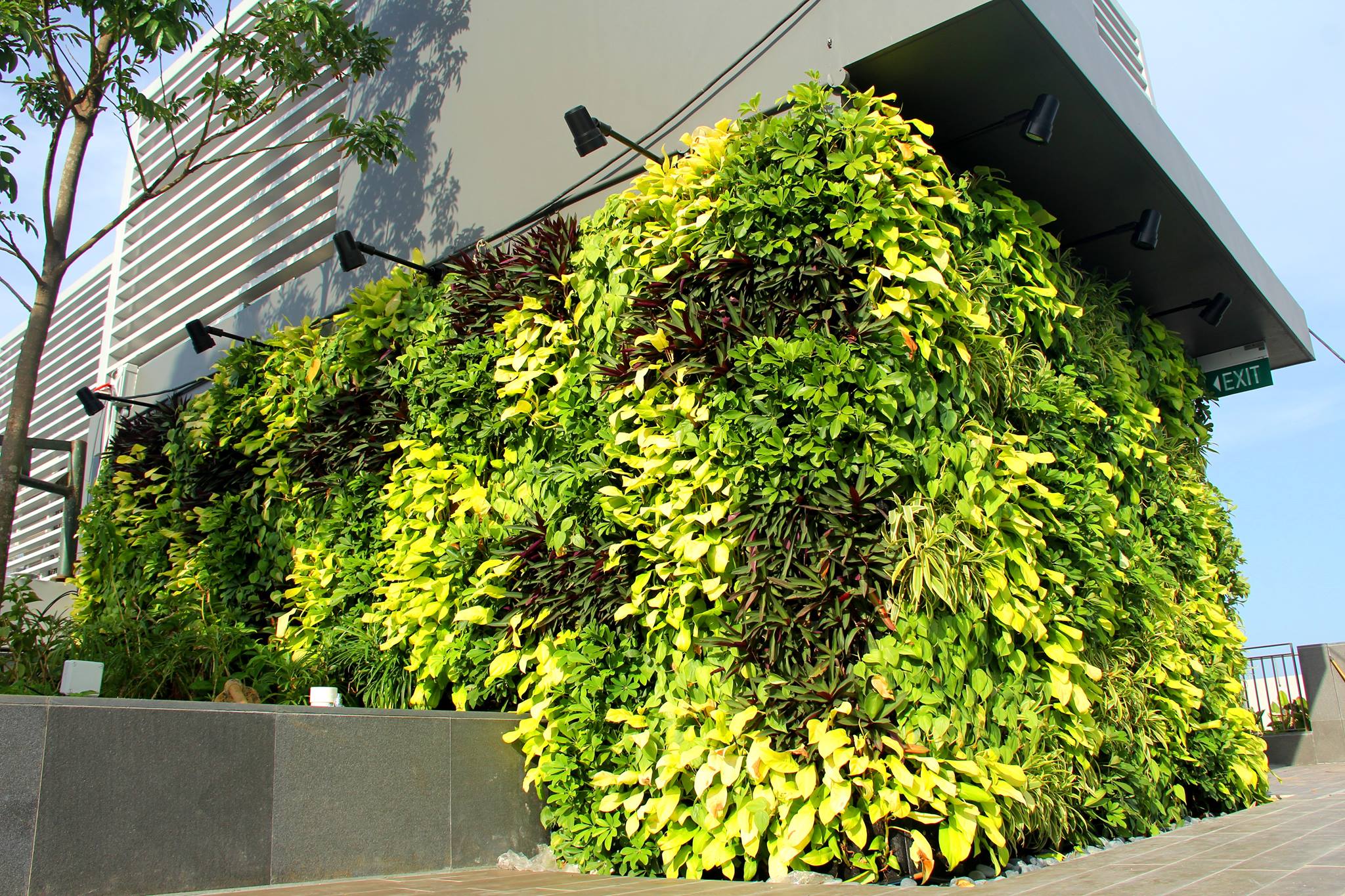

PlanterCell® H2O-R Panel applied to areas such as Indoor and outdoor wall facades, Screen walls, Parapet walls,Feature walls,Garden features,Creative green wall art installation, Walkways and hoarding, Traffic noise barrier wall...

Specifications

Product PlanterCell H2O-R Panel

HDPE

UV-Stablised

80

Panel Thickness (mm) 30
Panel Width (mm) 1220
Panel Length (mm) 2220
Weight (kg/m2)

Panel: 8

Design: 25 - 30

Insu Board Thickness (mm) 12

Water Retention Foam

Thickness (mm):

Density (kg/m3):

Hardness (kPa):

Swell test (%):

Water Uptake (by weight):



15

29 - 39

7-12

 10-20

>25x

Insu Felt Weight (g/m2) 100
Plantercell H2O-R Moisture Mat Weight (g/m2) 400
